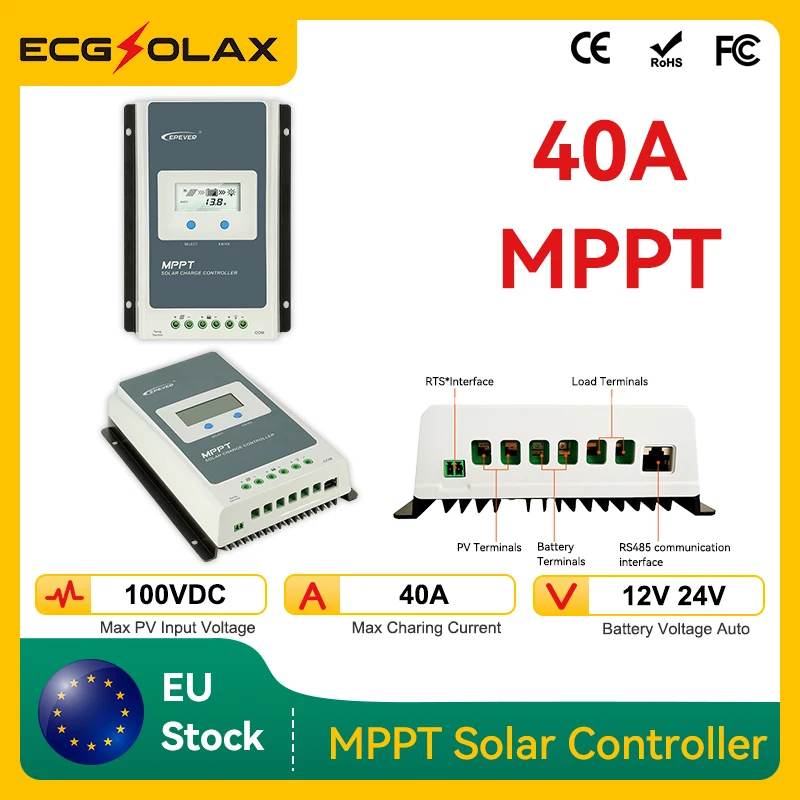

ECGSOLAX 40A MPPT Solar Charge Controller 12V 24V Battery Solar Panel Regulator Tracer AN Series Max PV 60VDC 100VDC

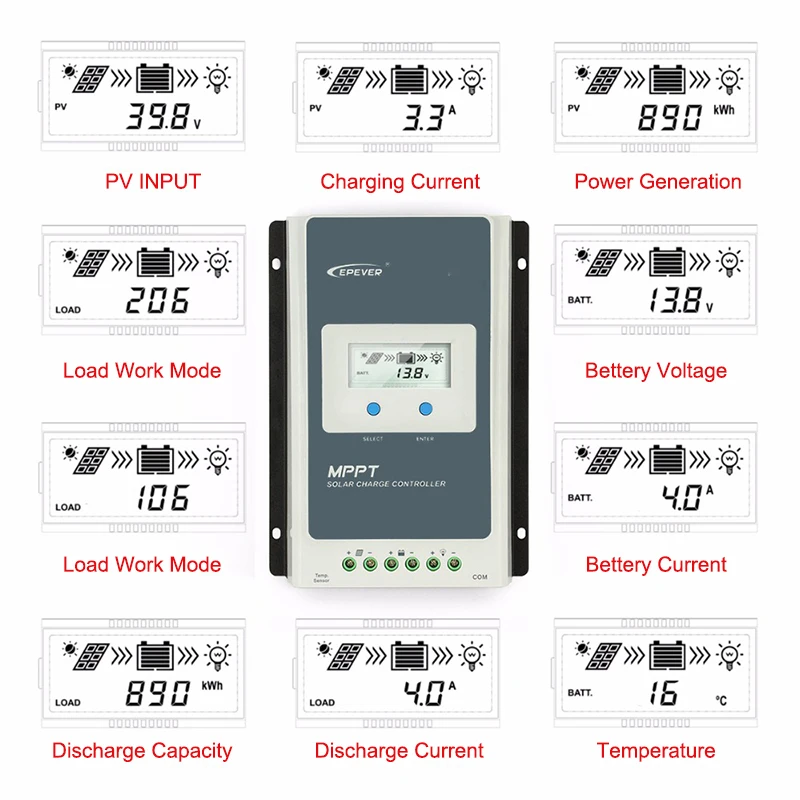

ECGSOLAX 40A MPPT Solar Charge Controller 12V 24V Battery Solar Panel Regulator Tracer AN Series Max PV 60VDC 100VDC Introduction: The Tracer AN series. Based on common negative design and advanced MPPT control algorithm, with LCD displaying running status, this product is artistic, economical and practical. Improving the MPPT control algorithm further, Tracer AN series can minimize the maximum power point loss rate and loss time, quickly track the maximum power point of the PV array and obtain the maximum energy from solar modules under any conditions; and can increase the ratio of energy utilization in the solar system by 10%-30% compared with a PWM charging method. The limitation function of the charging power and current and reducingcharging power function automatic improve the stability which works even connecting oversize PV modules and in high temperature, and increase the professional protection chip for the communication port, further improving the reliability and meeting the different application requirements. Features: 1.Advanced MPPT technology, with efficiency no less than 99.5% 2.Ultra-fast tracking speed and guaranteed tracking efficiency 3.Advanced MPPT control algorithm to minimize the maximum power point loss rate and loss time 4.Wide MPPT operating voltage range 5.High quality components, perfecting system performance, with maximum conversion efficiency of 98% 6.Accurate recognition and tracking of multiple-peaks maximum power point 7.International famous brands of ST and IR's components of high quality and low failure rate are used, which can ensure the product’s service life 8.Charging power and current limitation function 9.Compatible with lead-acid and lithium-ion batteries
